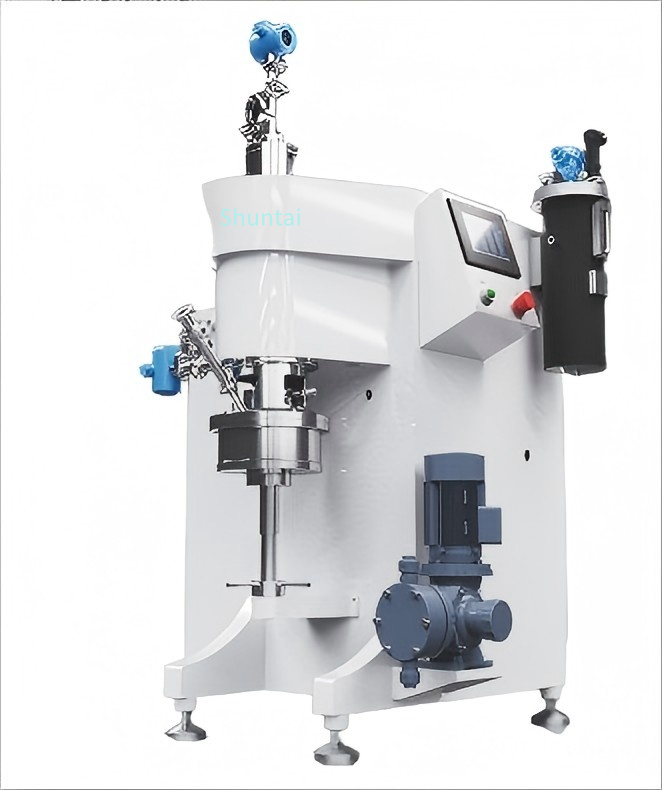

This is a physical grinding process that preserves the inherent properties of the material, guaranteeing the effective deaggregation of loose substances and true grinding. High-speed rotation of the rotor within the bead mill, the grinding medium exerts shear, impact, and crushing forces, leading to the disintegration, dispersion, grinding, deaggregation, homogenization, and emulsification of particles within the fluid.
Main Features:
Technical Parameters :

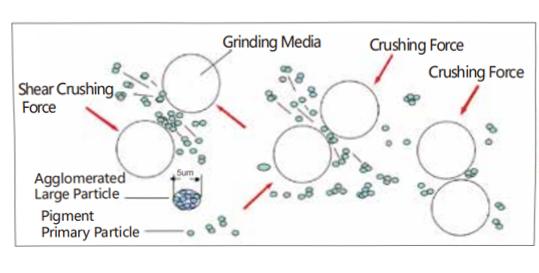

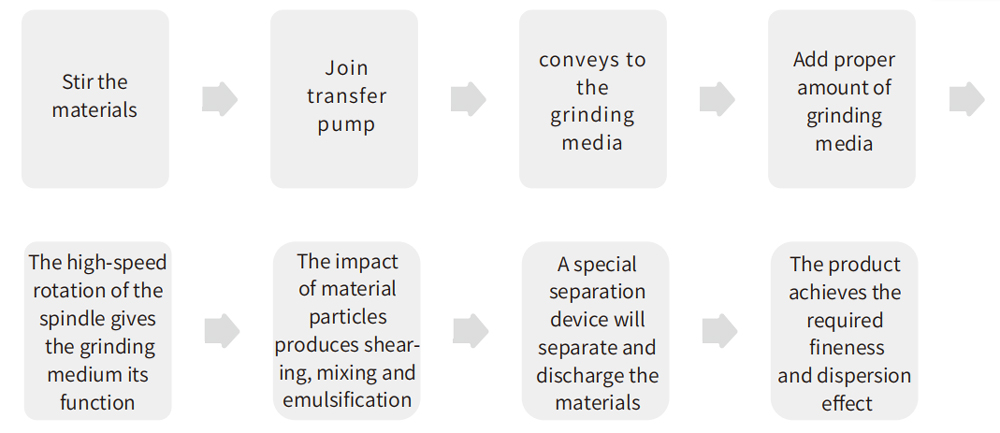

Grinding Machine Working Principle :
| Model | Chamber Effective Volume (L) | Motor Power (KW) | Processing Capacity (L) | Bead Size (mm) | Weight (KG) | Dimensions(mm) |
| Standard Single power | 1.38 | 7.5 | 3-30 | 0.03-0.3 | ≈400 | 1100*100*1600 |
| Standard Single power | 3.80 | 15 | 30-200 | 0.03-0.3 | ≈1000 | 1400*100*2100 |
| Dual Power | 1.30 | 15 | 3-30 | 0.03-0.3 | ≈750 | 1300*1150*2000 |
| Dual Power | 4.70 | 30 | 30-200 | 0.03-0.3 | ≈1800 | 1800*1150*2300 |
| Dual Power | 20.00 | 50 | 50-600 | 0.03-0.3 | ≈2700 | 1850*1250*2500 |
