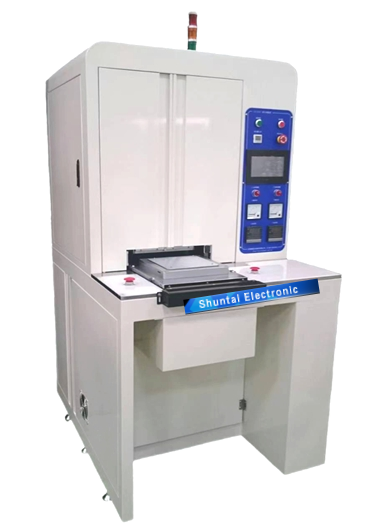

Universal manual stacking machine for MLCC, LTCC, HTCC or other similar components; Suitable for green ceramic tapes with, or without carrier film
Main features:
• Fast machine start up, simple operation, high alignment accuracy, small footprint and numerous possible options
• A stable servo pressure system ensures stack quality
• Stacking sequence such as pressing forces and pressing times per each layer can be fully programmable via a touch screen interface.
Technical Specification:
| Stacking Machines - Sheet Stackers Technical Specification | |||
| Model | Manual Stacker | ||
| Thermal Stress Press Machine | Registration Pins Stacker | CCD Stacker | |
| Loading and Unloading | Manual | ||
| Alignment | Pre-laminating | Registration Pins | CCD |
| Removes carrier film | Pre-laminating | Removed manually | Carrier film can be removed automatically before or after stack |
| Block Fix | Pre-laminating | Carrier pallette | Vacuum table Or Carrier pallette |
| Stacker Press Force | Oil pressure,100T | Oil Pressure,40-42T | 1,000kgf~20,000kgf (MAX 196KN), (Can be customize) |
| Press Force Precise | ±2%( test as 10,000kgf ) | ||
| Stack Thickness | 100mm | Max 5 mm(1000 layer) | |
| Stacking Temperature | MAX 150℃±3% | MAX: 100℃ ±3% | |
| Stacking Table | plane accuracy±0.02mm | plane accuracy：±0.01 mm; | |
| Alignment Platform | Stacking and pressing area: 200mm*200 mm | Stacking and pressing area: 230mm, Can be ustomized | |
| Options | Vacuum pump, Sheet glue applicato; Custom designs to meet special requests for your technology | ||
