Main Features:

◆  Imported servo control system, efficient, energy-saving and safe;

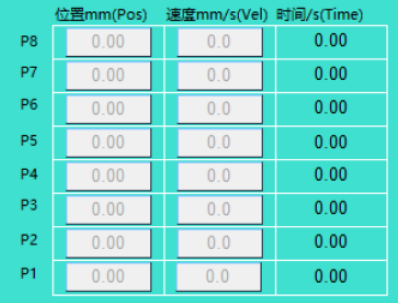

◆  Eight stage injection speed adjustable,higher injection precision;

◆  Omron PID Controller for mold;

◆  Integration of mold design, makes conversion of mold chase and equipment easy;

◆ Compact design makes it easy to move equipment;

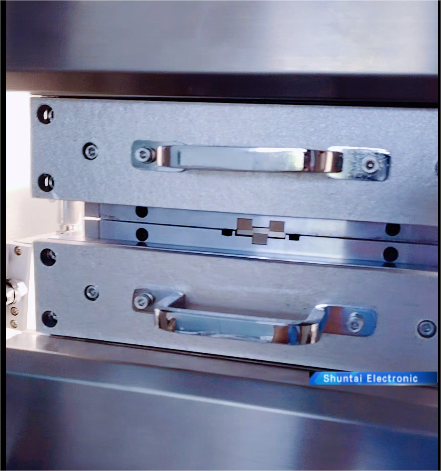

◆  Precision Molds, multiple resin-feeding pots, which significantly increases the effective utilization ratio of resin, reduces the molding cycle, and dramatically improves the molding quality.

Technical Parameters

◆  Mold clamping pressure：98-1176KN, Max 120T (180T for option);

◆  Injection Pressure:  1.0-29.4KN;

◆  Lead Frame Size: Wdith 20-90mm，Length124-280mm,Thickness 0. 15-1.2mm;

◆  Raw Material :  φ 11-φ20mm (±0.2mm) , Legnth Max : 35mm;

◆  Control system: PLC (Omron);pressure curve output and storage;

◆  Loading and unloading : By Manual;

◆  Operating : 10 inch touch screen;

◆  Oprating temp. for mold: 175±3℃;

◆  Safety protection system: safety grating, leakage protection device, emergency stop button device, protection;

◆  Power: AC 380V，50/60HZ;

 Options:

Mold Vacuum Extraction System: improve the problem of poor filling and reduce porosity
