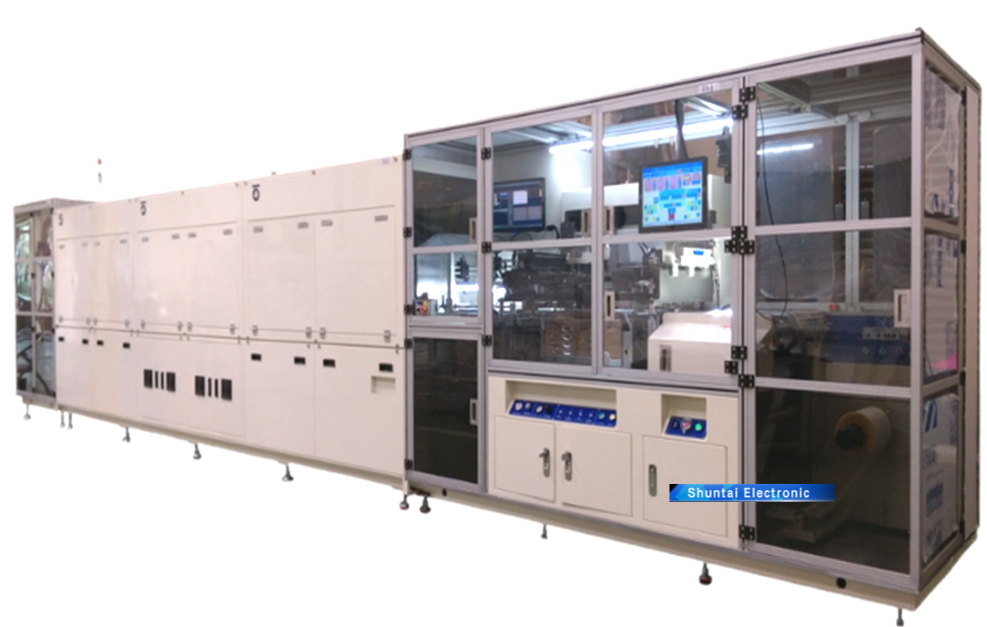

This machine is designed to roll to roll print electrode pattern on to ceramic foil cast on carrier film (mylar). Punches registration holes (if needed) on edges of mylar tape and dry the print.
Main Features:
• Suitable for MLCC, MLCV mass production applications
• Checks print quality by CCD automatically
• Fully programmable printing parameters
• German Backhoff PC Control System
• Ethernet communication, real-time monitoring and display
• Well suitable for high layer count application
Technical Specification:
| Roll to Roll Printer Technical specification | ||||
| Type | RP200 | RP300 | RP400 | |
| Carrier Foil Width | MAX 200mm | MAX 300mm | MAX 400mm | |
| PET Thickness | 18-60 um | |||
| Green Ceramic Thickness | MIN:1.8um | |||
| Efficiency | print to print 2.7/S | print to print 3/S | print to print 3/S | |
| Squeegee Speed | 900mm/sec | |||
| Squeegee Route | 100-250mm | 100-350mm | 100-450mm | |
| Transfer System | Loading System | Vacuum suction shaft conveying; Servo motor+turbine reducer；Outside diameter: 600mm | ||
| Conveyor | Servo motor：100mm-350mm(adjustable); Vacuum adsorption suction：>8kg ;Pitch Moving Precise：+/-0.2mm; | |||
| Equipped | Laser positioning point; Electrode needle high-speed electrostatic eliminator | |||
| Tension | 2.0-10 kgf ; There are two modes of control: real-time tension, or constant tension | |||
| Position Correction | EPC adjustable：+/-35 mm, Roll Edge Precise：±0.2mm | |||
| Material Inspection | One CCD (8K pixels) inspect ceramic foil before print | |||
| Print System | Repeat Accuracy | <5μm | ||
| Screen size | 450 *450 mm | 650 *650 mm | 750*750mm | |
| Max Printing area: | 150*150mm | 270*270mm | 330*330mm | |
| Squeegee speed | 50-900mm/sec | |||
| Printing Accuracy | △X<0.015mm,△ Y≤0.015mm | |||
| Dry System | Drying zone length | 3 M， Divided into two Rooms | 6M，Divided intoTthree Rooms | |
| Number of drying zones | 4 Zone Per Room | |||
| Drying Method | One Hot air knife and Three infrared area | |||
| Temperature range | Room Temp to 120℃,+/-3℃; | |||
| CCD Visual Inspection | Mark Inspection after Printing | 2 CCD cameras inspection,check mark pattern; Printing centerline detection: Check whether the printing centerlines of the previous and next sheets are aligned, | ||
| Print Quality Inspection | CCD checking area :X>180mm,Y>180mm | CCD checking area :X>270mm,Y>270mm | CCD checking area :X>320mm,Y>320mm | |
| Options | Automatic slurry supply system | |||
