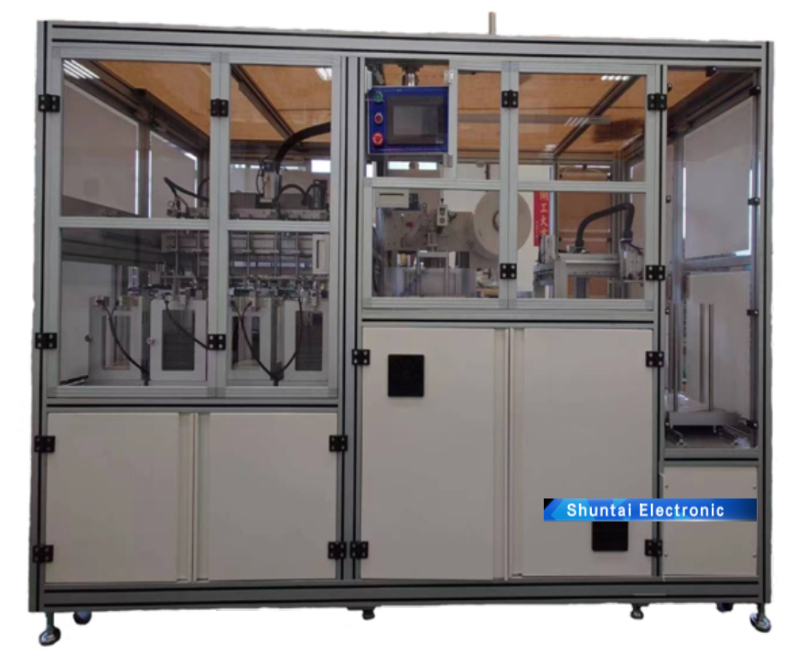

Green ceramic bars after stack process vacuum package for isostatic laminate process. • Multiple vacuum packaging modes to choose • Safe and effective system control • Security protection monitoring Fully automatic, easy to operate
Main Features:
◆ Mechanical arm grabs, and the bar is placed on the track according to the program settings;
◆ The lower sealing film is transported along the conveyor belt, while the upper sealing film is supplied at the vacuum pumping point;
◆ Automatic vacuum pumping, film sealing around the bar, and cut excess sealing films;
◆ The robotic arm grabs the vacuum packaged bars and places them in the receiving frame.
Technical Specification:
| Bar Vacuum Packaging Machine Technical Specification | ||||
| Model | BP16 | BP16S | BP22 | BP22S |
| Palettes Size | 160*160*1mm | 220*220*1mm | ||
| Tape Width | 220mm, Thickness 0.15mm | 280mm, Thickness 0.15mm | ||
| Aluminum Sheet Cassette | One Group.Size：MAX:160*160mm*200, Depth ±0.5mm | One Group，Magazine Size：MAX:220*220mm*200, Depth ±0.5mm | ||
| Sheets Cassette | One Group，Size: MAX:152*152mm*200, Depth ±0.5mm | Two Groups，Size: MAX:152*152mm*200, Depth:±0.5mm | One Group，Size: MAX:203*203mm*200, Depth ±0.5mm | Two Groups，Size: MAX:203*203mm*200 Depth ±0.5mm |
| Loading System | Two Groups，Sealing film roll Width: MAX:160mm | Four Groups，Sealing film roll Width: MAX:160mm | Two Groups，Sealing film roll Width: MAX:220mm | Four Groups，Sealing film roll Width: MAX:220mm |
| Packing Order | Aluminum sheet+Film+Bar+Film | Film+Bar+Film+Aluminum sheet+Film+Bar+Film | Aluminum sheet+Film+Bar+Film | Film+Bar+Film+Aluminum sheet +Film+Bar+Film |
| Vacuum Sealing | SV-40B imported vacuum pump 2HP | |||
| Unloading Cutting | Circular blade; Rodless cylinder | |||
